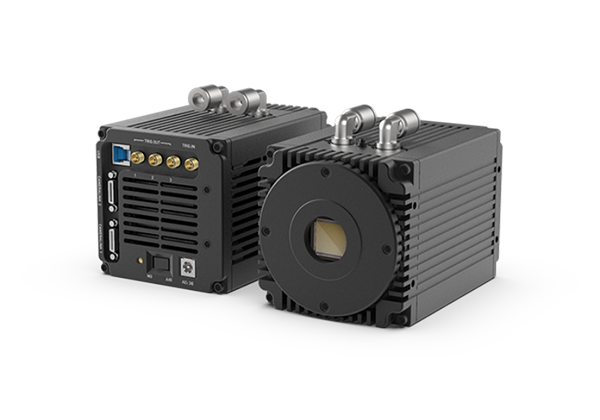

Dhyana 400BSI V2
6.5 μm BSI sCMOS Spectroscopy camera
- 95%@600nm Peak QE
- 6.5μm x 6.5μm Pixel Size
- 2048 x 2048 Resolution
- 74fps@CL, 40fps@USB3.0
- CameraLink & USB3.0
詢 價
產品介紹
Dhyana 400BSI V2 is a very excellent spectroscopy camera with response range from 200 to 1100 nanometers. Not only very good signal at low lighting and increased sensitivity at UV, visible, and near-infrared wavelengths, but also higher bandwidth and faster conversion speed.
-

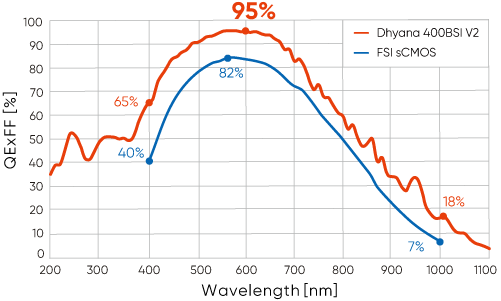

寬光譜成像，高信噪比
采用背照式sCMOS技術，具有200nm-1100nm的寬光譜響應能力，峰值量子效率高達95%QE，讀出噪聲僅1.1e-, 具有顯著的高信噪比優勢，非常適合弱光成像應用。
-

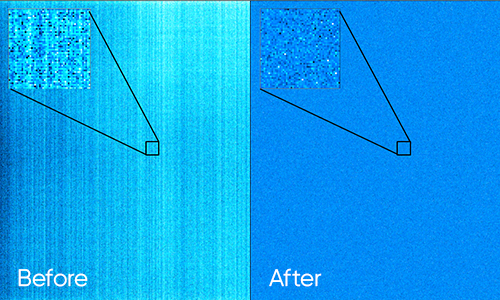

先進定量校準技術
采用鑫圖先進的定量校準技術（如DSNU／PRNU），相機成像背景質量更高，定量分析更精準，幫助科學研究獲得可信賴的結果，
-
6.5微米像元尺寸
6.5μm像素完美匹配High NA 100倍、60倍和40倍顯微鏡物鏡的理想像元尺寸。它能很好地平衡高的空間采樣率和高靈敏度的需求，充分發揮光學性能優勢。
技術參數 >
- Model: Dhyana 400BSI V2
- Sensor Type: BSI sCMOS
- Sensor Model: Gpixel GSENSE2020BSI
- Color/Mono: Mono
- Array Diagonal : 18.8 mm
- Resolution: 4MP, 2048(H) x 2048(V)
- Pixel size: 6.5μm x 6.5μm
- Effective Area: 13.3mm x 13.3mm
- Peak QE: 95%@600nm
- Frame Rate: 74fps@CameraLink; 40fps@USB3.0
- Full-Well capacity: 45ke-
- Dynamic Range: 86dB
- Readout Noise: CMS: 1.1e-(Median)/1.2e-(RMS)
- Shutter Type: Rolling/Global Reset
- Exposure Time: 6.6μs-10s
- DSNU: 0.2e-
- PRNU: 0.3%
- Cooling Method: Air & Liquid
- Cooling Temperature: 45℃ below ambient
- Dark Current: Air: 0.15e-/pixel/s@-15℃, Liquid: 0.10e-/pixel/s@-25℃
- Optical Interface: C-mount
- Data Interface: USB3.0 & Cameralink
- Binning: 2x2，4x4
- ROI: Support
- Trigger Mode: Hardware & Software
- Output Trigger Signals: Exposure, Global, Readout, High level, Low level
- Trigger Interface: SMA
- Data Bit Depth: 16bit
- Power Supply: 12V/8A
- Power Consumption: 60W
- Dimensions : 85mm x 85mm x 125mm
- Weight: 1460g
- Software: Mosaic / LabVIEW / Matlab / Micromanager / MetaMorph
- SDK: Support
- Operating System: Windows / Linux
- Operating Environment: Temperature 0~40°C / Humidity 10~85%
顯示更多
應用方向 >
Download >
-
Dhyana 400BSI V2 Brochure
-
Dhyana 400BSI Dimension
-
Software-Mosaic V1.6.8
-
Plugin-Labview ( with user guide )
-
Plugin-Matlab ( with user guide )
-
Plugin-MetaXpress ( with user guide )
-
Plugin-Micromanager ( with user guide )
-
Driver-TUCam Camera Driver V1.4.0.8
